Mechanicals

The ANELLO Aerial INS (P/N 10001601) features a 22 pin MIL-DTL-38999 connector. The case housing is aluminum with an anodized finish.

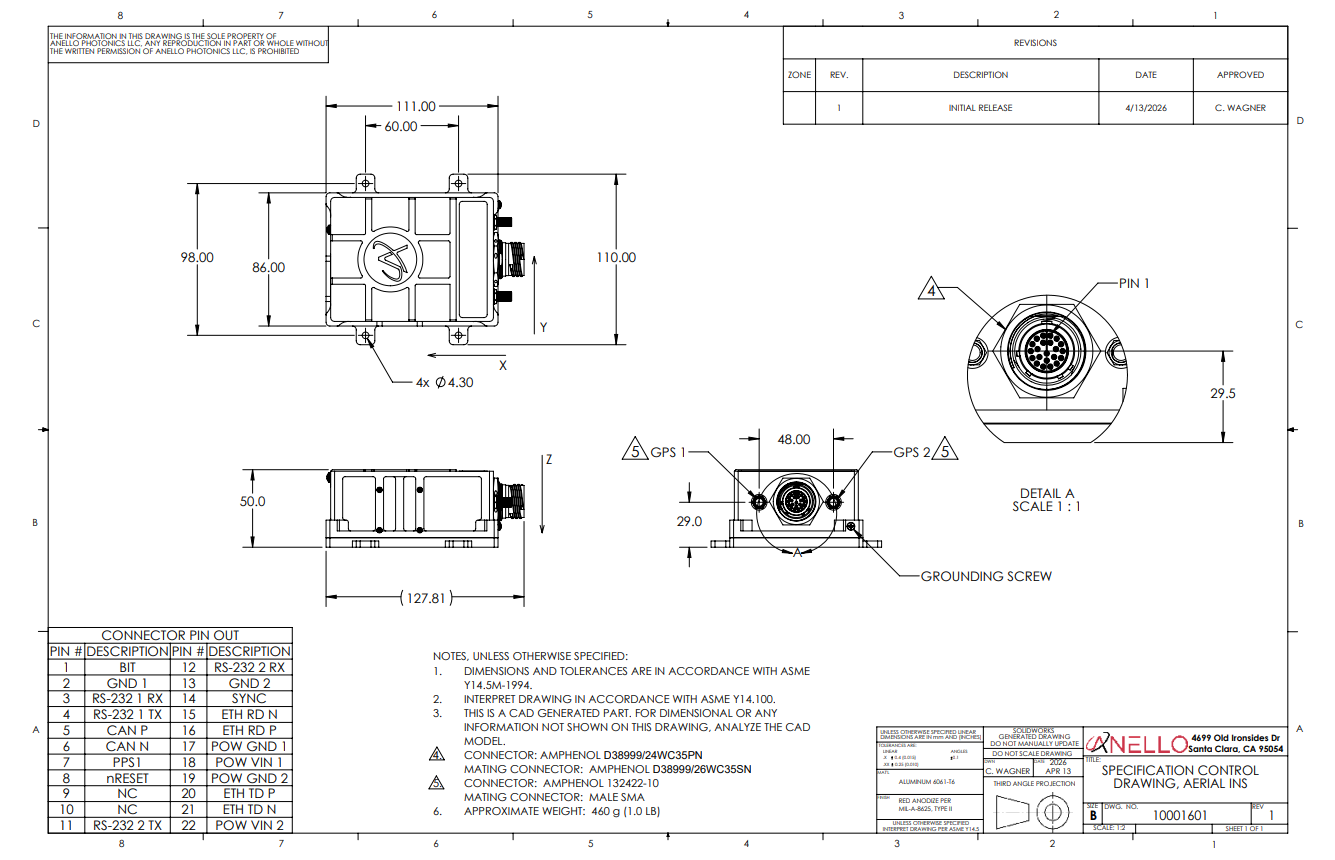

Aerial INS SCD Drawing: PDF

_images/SCD_Mechanical_Aerial_INS.png

Note

If you purchased the Aerial INS Evaluation Kit, a schematic of the breakout cable can be downloaded here.

Wiring Variation (Pre–February 20, 2026 Cables): Cables manufactured prior to February 20, 2026 may contain either red/black or purple/yellow CAN wiring. In red/black assemblies, red corresponds to CAN_P and black to CAN_N. In purple/yellow assemblies, purple corresponds to CAN_P and yellow to CAN_N.

Note

Total capacitance on the RESET line (cable + input + ESD, etc.) must be ≤ 10 nF; no external reset capacitor recommended.

Note

The Sync, RESET, and BIT pins are high-impedance inputs and do not require 50 Ω termination.
